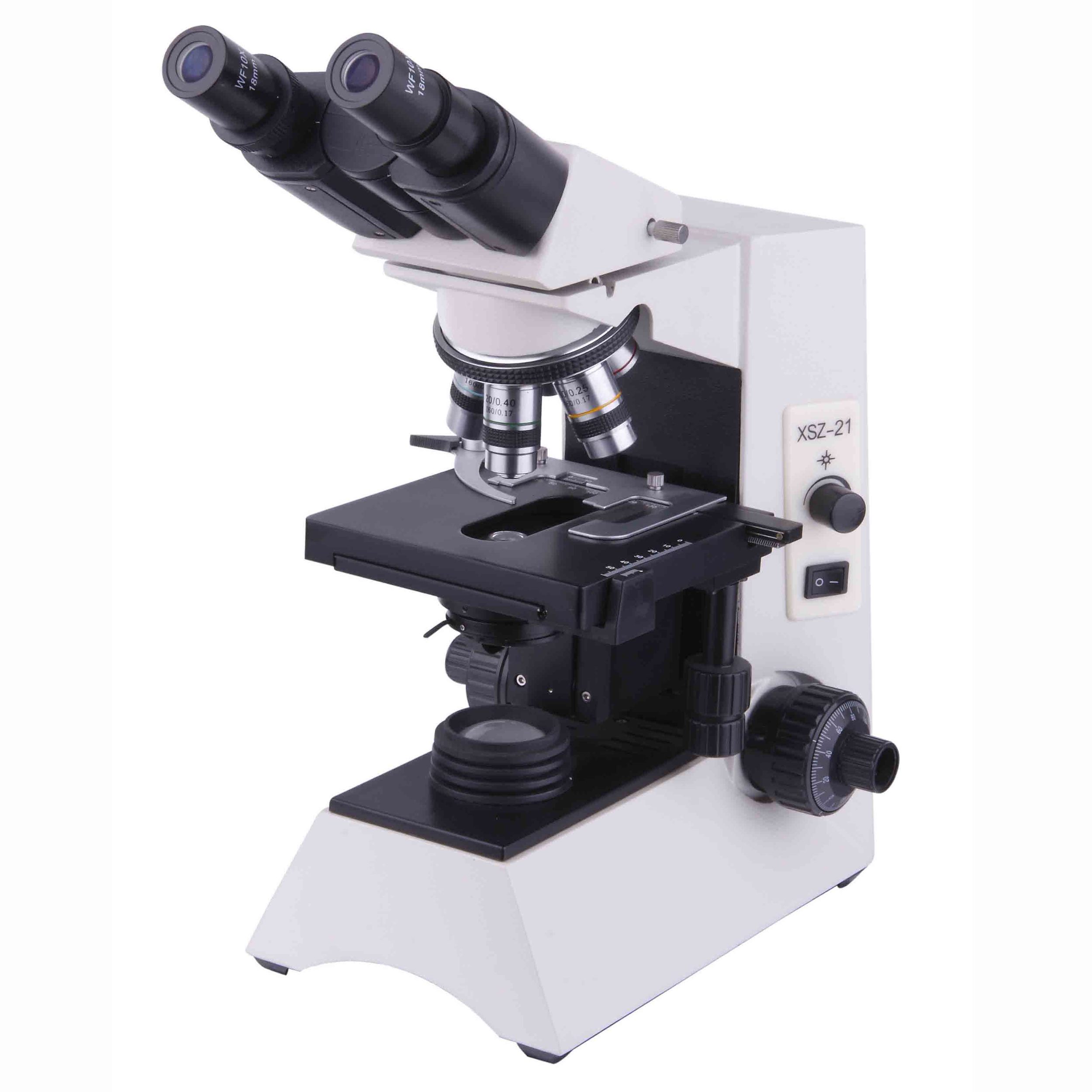

CB.14.211/215 Compound Binocular Microscope
CB.14.211
CB.14.215
Description:
- Comes in two models: 211 and 215
Specification*:
* "●" is standard outfit, "o" is an optional accessory.
CPD.14.211/215 Compound Binocular Microscope |
CPD.14.211 |
CPD.14.215 |
|
| Head | Sliding Binocular Head inclined 45°, 360° Rotatable interpupillary distance 50-75mm |
● |
- |
Compensation Free Binocular Head inclined 30°, 360° Rotatable interpupillary distance 50-75mm |
- |
● |
|
| Eyepiece | WF10X |
● |
● |
WF16X |
o |
o |
|
| Objective | Achromatic 4X |
● |
● |
Achromatic 10X |
● |
● |
|
Achromatic 40X(S) |
● |
● |
|
Achromatic 100X(S,Oil) |
● |
● |
|
| Nosepiece | Quadruple |
● |
● |
Quintuple |
o |
o |
|
Stage |
Double Layers Mechanical Stage 140X140mm, Moving range 75X45mm |
● |
● |
| Focusing | Coaxial Coarse and fine focusing, Range 30mm, Focusing Interval 0.002mm |
● |
● |
| Condenser | Abbe NA=1.25 |
● |
● |
Light Source |
Halogen lamp 220V/6V/ 20Wor 110V/6V/20W, Adjustable Brightness |
● |
● |
Halogen lamp 220V/6V/ 30Wor 110V/6V/30W, Adjustable Brightness |
o |
o |
|
