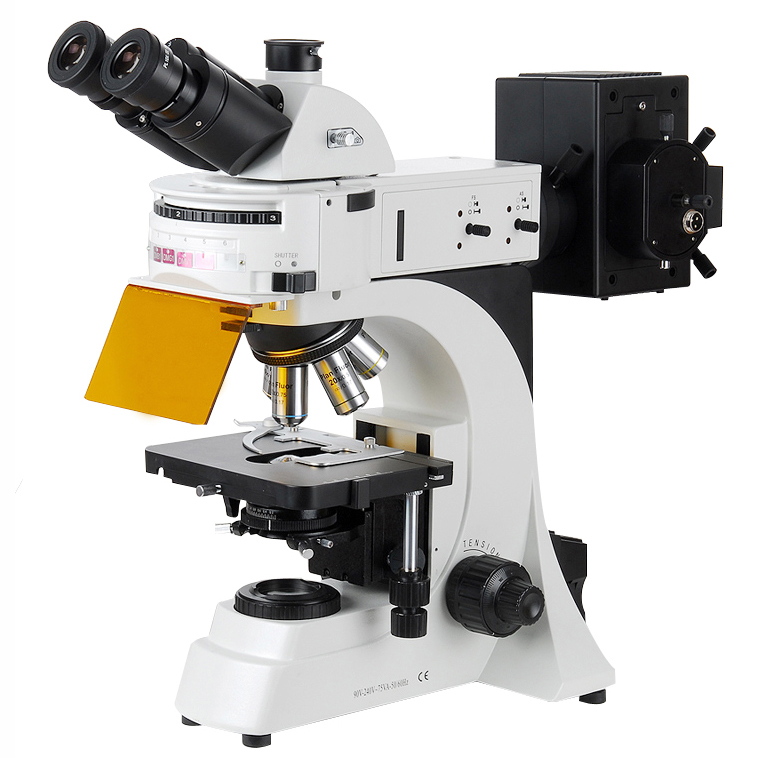

FM.03.TRFLP Fluorescent Trinocular with APO Fluorescent Objective
Description:
- Designed for biomedicine cell detection, immunofluorescence analysis, cell culture observation, and fluorescence in-situ hybridization (fish)
- New generation of infinity color corrected optical systems and professional plan semi-apochromatic fluorescence objectives present to you sharp and bright fluorescence image
- Includes a professional fluorescence filter system, imported optical material and broadband multilayer coating, high transmissivity, mould proof, heat insulation and safety protection system, OSRAM brand mercury lamp, digital power-supply control
- Swallow tail slide switch easy to change filter cubes, three paths for fluorescence and one for bright field, four filter cubes can be mounted
- Scientific research class cold CCD, high resolution, fast transmission. Intelligence Chinese fluorescence image processing software, meets any request of the most professional picture processing
- 6V/30W transmission illuminator, Kohler illumination and swing out condenser enable to get full brightness at any magnifications under bright field observation. Various observations can be achievable by using dark-filed, phase contrast, polarization accessories.
Specification:
| Optical system | Color corrected infinity optical system |
| Head | Gemel trinocular head, 300 inclined, interpupillary distance adjustment range 54-75mm, one eyepiece tube with ±5 diopter adjustment light splitting ratio: binocular 100%; binocular 0% / trinocular 100% |
| Eyepiece | PL10X22mm high eye-point plan eyepiece |
| Infinity plan semi-apochromatic fluorescence objective |
4X/0.13/WD15.3mm |
| 10X/0.30/WD8.7mm | |
| 20X/0.50/WD2.5mm | |
| 40X/0.75/WD0.72mm | |
| 100X/1.28/WD0.21mm | |
| Nosepiece | Reversed quintuple nosepiece |
| Focus system | Coaxial focus system, coarse focus distance 25mm, fine focus precision 0.002mm, with degree of tightness adjustment and height limit |
| Mechanical stage | Double layer mechanical stage 175×145mm, dismountable, special surface treatment, 76mmX50mm moving range, 0.1mm precision, specimen holder for two slides. |
| Reflected fluorescence illumination system | XYRFA Kohler reflected illuminator, with iris diaphragm, center adjustable |
| U-LH100HG mercury lamp house, center and focus adjustable. With mirror, center and focus adjustable. | |
| U1-RFLT100 digital mercury power supply, 90-245VAC wide voltage | |
| OSRAM 100W DC mercury lamp | |
| Centring objective for mercury lamp | |
| 30ND25 Attenuation pad | |
| Transmitted illumination system | 6V/30W halogen bulb, center presetting, brightness adjustable. Kohler illumination, with iris diaphragm. |
| N.A.1.2/0.22 swing out condenser, iris diaphragm, condenser center adjustable, go up and down by pinion and rack. | |
| φ45mm blue filter | |
| Fluorescent Exaction Filter | UV1 |
| B1 | |
| G1 |
Optional Accessory:
| Eyepiece | High eye-point PL10x/22mm with micrometer, diopter adjustable |
| High eye-point PL15x/16mm | |
| Objectvie | Infinity plan Objective 4x |
| Stage | 175*145mm mechanical stage,adjusting for left hand |
| Color Filter | Yellow (Dia:45mm) |
| Green(Dia:45mm) | |
| Blue(Dia:45mm) | |
| Neutral color filter (Dia:45mm) | |
| CCD adapter | 1x C-Mount,Focus Adjustable |
| 0.35x, For 1/3 C-Mount,Focus Adjustable | |
| 0.50x, For 1/2 C-Mount,Focus Adjustable | |
| 0.67x, For 2/3 C-Mount,Focus Adjustable |
