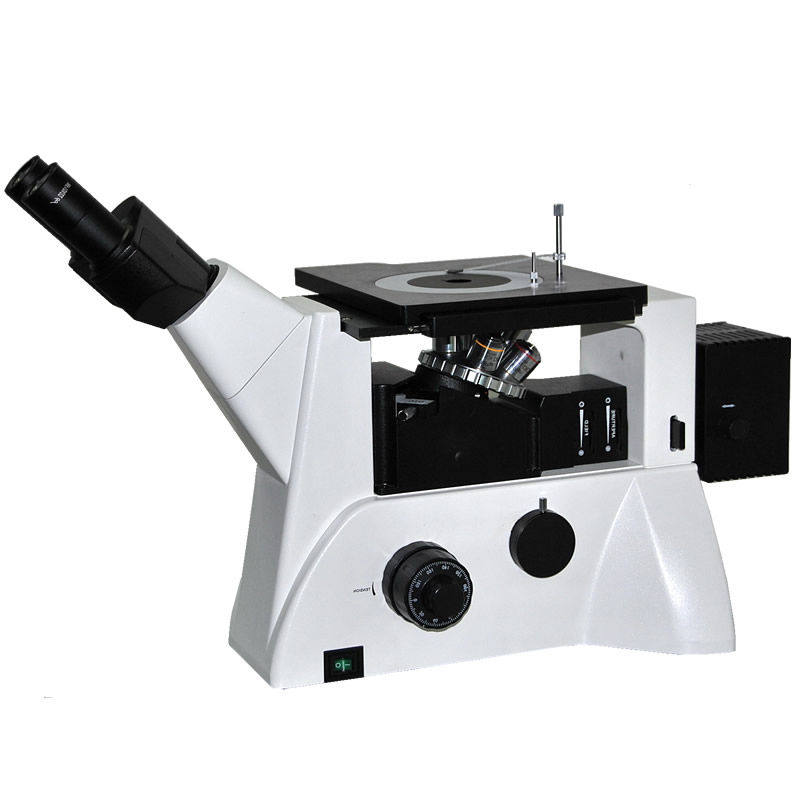

IML.02.L20&L20BD Inverted Metallurgical Microscope
Description:
- Equipped with an excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation
- Compact and steady main frame body is embodiment for the shock resistance
- Ideal ergonomic design is adopted in this unit and has easier operation and wider space
- Ideal optical instrument for micro observation in metallographic structure and surface morphology
- Suitable for research in metallography, mineralogy, precision engineering, etc.
Specification:
Part Name |
Spec. |
DIC.02.L20 | DIC.02.L20BD |
| Head | Inclination angle is 45°and interpupillary distance is 53~75mm. | ||
| Eyepiece | Wide field WF10X(field number:Φ22mm) | ||
| Nosepiece | Quintuple (Backward ball bearing inner locating) with DIC slot | ||
| DIC Slider | DIC Slider for DIC Objective 5x-10X-20x | ||
| Infinity Plan Achromatic Objective | PL L 5X/0.12 BF WD=18.2 mm(for DIC observation) | ● |
|
| PL L10X/0.25 BF WD=20.2 mm (for DIC observation) | ● |
||
| PL L20X/0.40 BF WD=8.80 mm (for DIC observation) | ● |
||
| PL L50X/0.70 BF WD=:3.68 mm | ● |
||
| PL L5X/0.12 BD WD=9.7 mm (for DIC observation) | ● |
||
| PL L10X/0.25 BD WD=9.30 mm (for DIC observation) | ● |
||
| PL L20X/0.40 BD WD=7.23mm (for DIC observation) | ● |
||
PL L50X/0.70 BD WD=2.50 mm |
● |
||
| Focus System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm | ||
| Stage | Mechanical stage，overall size:242mmX200mm，moving range: 30mmX30mm | ||
| Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm. | |||
| Illumination System | 6V30W halogen and brightness enable control. | ● |
|
| 12V50W halogen and brightness enable control. | ● |
||
| Integrated field diaphragm, aperture diaphragm and puller type polarizer. | |||
| Equipped with frosted glass and yellow, green and blue filters | |||
| Note: BF=Bright Field BD= Bright and Dark Field | |||
Optional Accessory:
Name of Parts |
|
| Eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div |
| Infinity Plan Achromatic Objective | PL L5X/0.10 BF WD=26.12 mm |
| PL L40X/0.60 BF WD=3.68 mm | |
| PL L60X/0.70 BF WD=3.18 mm | |
| PL L80X/0.80 BF WD=1.28 mm | |
| PL L40X/0.60 BD WD=3.00 mm | |
| PL L60X/0.70 BD WD=1.90 mm | |
| PL L80X/0.80 BD WD=0.80mm | |
| PL L100X/0.85 BD WD=0.22 mm | |
| CCD Adapter | 0.5X |
| 1X | |
| 0.5X with dividing 0.1mm/Div | |
| Digital Adapter | CANON EOS Digital Adapter |
