MC.01.148F2

MC.01.148F2A

Specification:

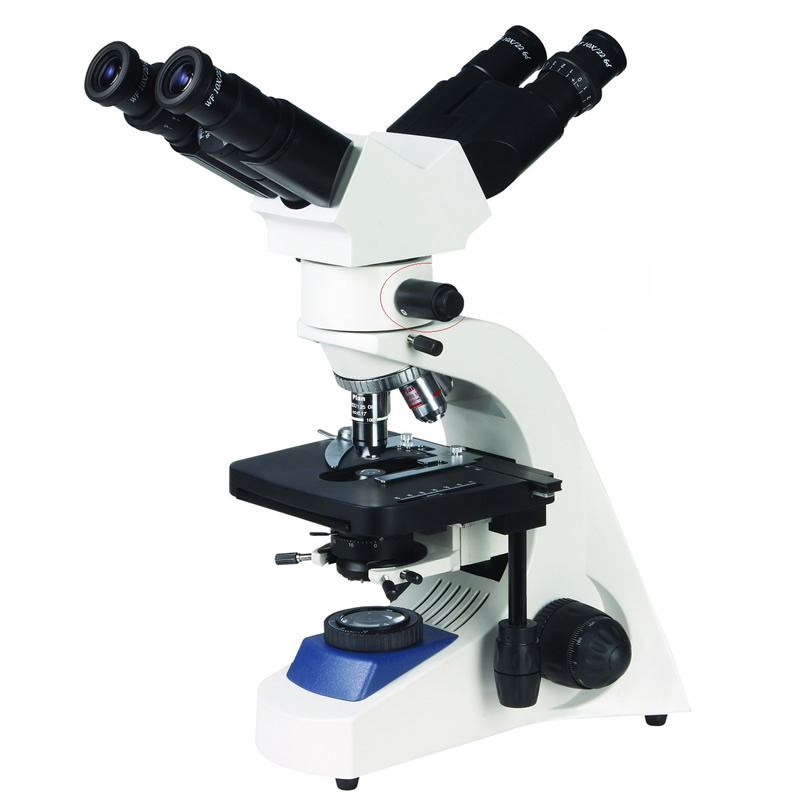

Two-Person Viewing Microscope
MC.01.148F2
MC.01.148F2A
Head
 Dual Viewing Compensation Free Binocular Head (55mm-75mm)
●
●
Indicator
 LED Cursor(Pointer)
-
●
Eyepiece
 WF10X/22mm
●
●
Infinity Objective
 4X
●
●
10X
●
●
40X, Spring
●
●
100X, Spring, Oil
●
●
Nosepiece
 Quadruple Revolving Nosepiece
●
●
Stage
 Double Layer Mechanical Stage, Size 180x150mm, Moving Range 70x50mm
●
●
Condenser
 Abbe Condenser N.A.=1.25, with Iris Diaphragm and Filter
●
●
Focusing
 Coaxial Coarse & Fine Focusing Knobs,Scale:0.002mm
●
●
Light Source
 Kohler illumination with Halogen Lamp 6V 20W,Brightness is adjustable.
●
●

Optional Accessory:

Head Compensation Free Binocular Head(48mm-75mm)
Eyepiece WF16X
WF20X
P16X
Objective Achromatic 20X
Achromatic 60X, Spring
Infinity Semi-plan Objective 4X
Infinity Semi-plan Objective 10X
Infinity Semi-plan Objective 20X
Infinity Semi-plan Objective 40X(S)
Infinity Semi-plan Objective 60X(S)
Infinity Semi-plan Objective 100X(S)
Infinity Plan Achromatic Objective 4X
Infinity Plan Achromatic Objective 10X
Infinity Plan Achromatic Objective 20X
Infinity Plan Achromatic Objective 40X(S)
Infinity Plan Achromatic Objective 60X(S)
Infinity Plan Achromatic Objective 100X(S)
Phase Contrast Attachment Phase Contrast Attachment
